Fuel Pump Module with Sender 77020-06401

Aftermarket replacement — reference images only. New replacement part. These are external aftermarket reference photographs associated with 77020-06401, not photographs of our actual stock. Visible reference or material markings identify the photographed example only; genuine Toyota supply, manufacturing origin and identical supplied markings are not claimed.

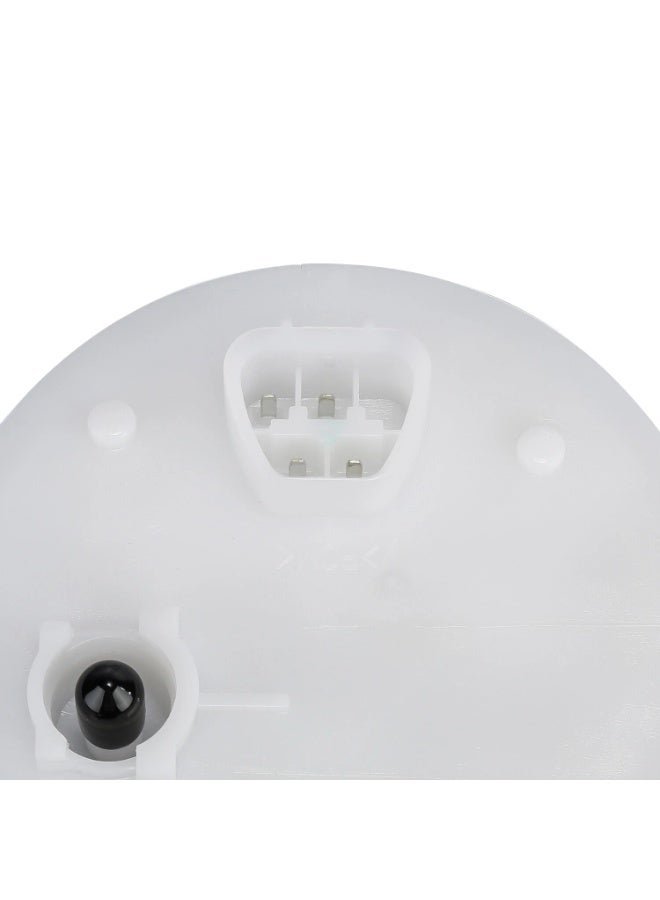

One complete in-tank fuel pump module with fuel-level sender, float arm and strainer, referenced to 77020-06401. The illustrated configuration has a round top flange, keyed electrical socket, outlet, sprung supports, reservoir and internal hoses. It is not a bare pump motor, separate sender or complete fuel tank. The sender is shown loose from its reservoir attachment in some reference views. No separate sealing ring, tank locking ring, vehicle wiring or installation tools are promised.

Match the exact original reference and complete flange, socket, outlet, reservoir and sender configuration before ordering. Other suffixes, a shared vehicle name or a shared internal pump do not establish complete-module compatibility. Contact customer service with your VIN and original-part photographs if uncertain. No universal model-year fitment or electrical-performance specification is asserted.

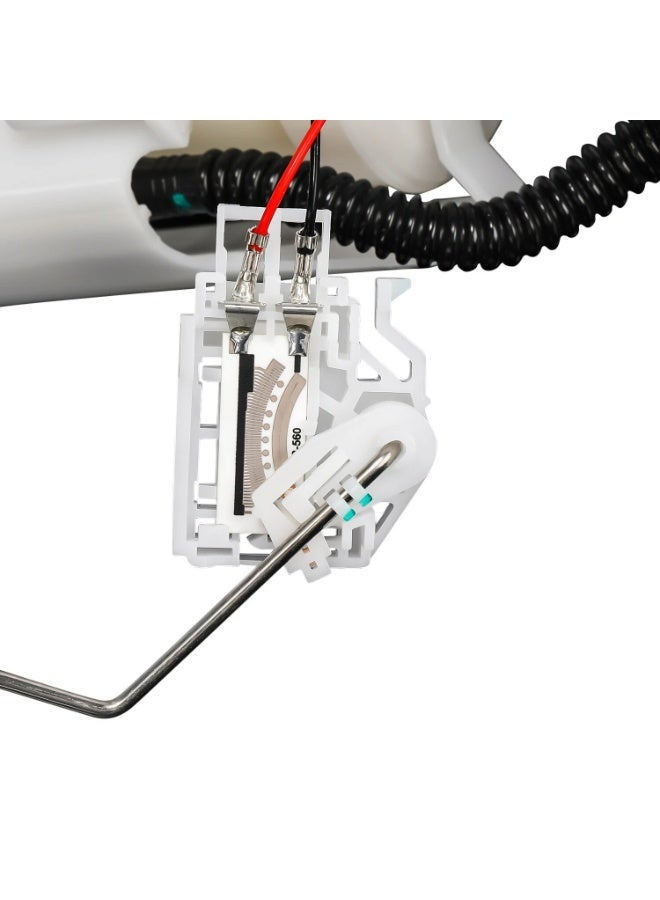

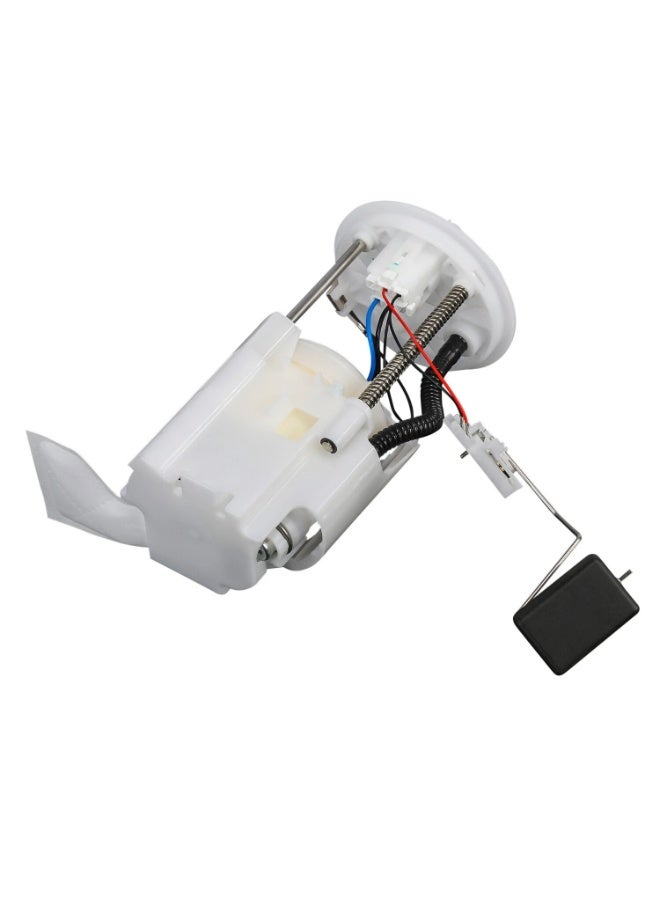

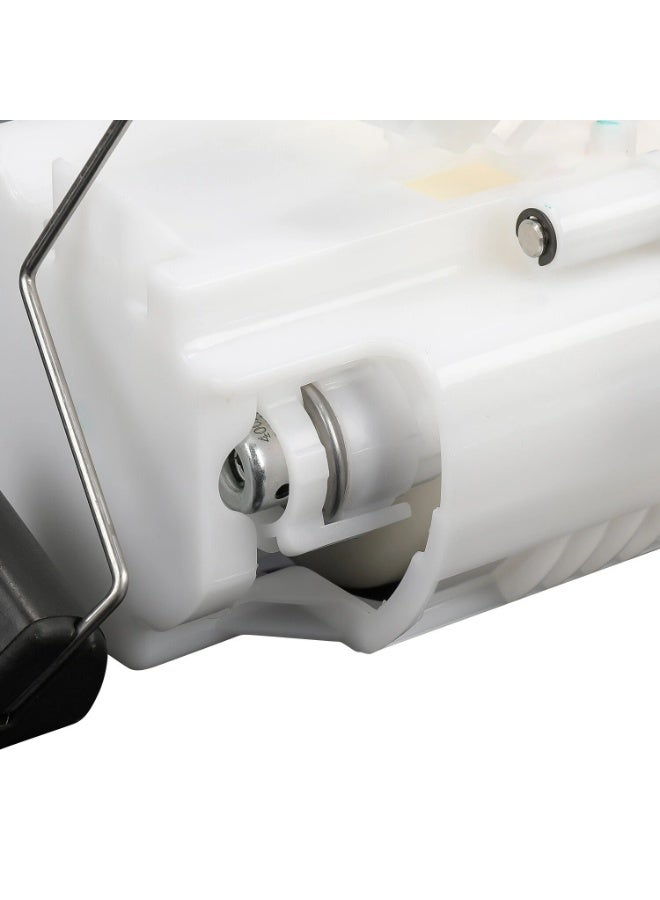

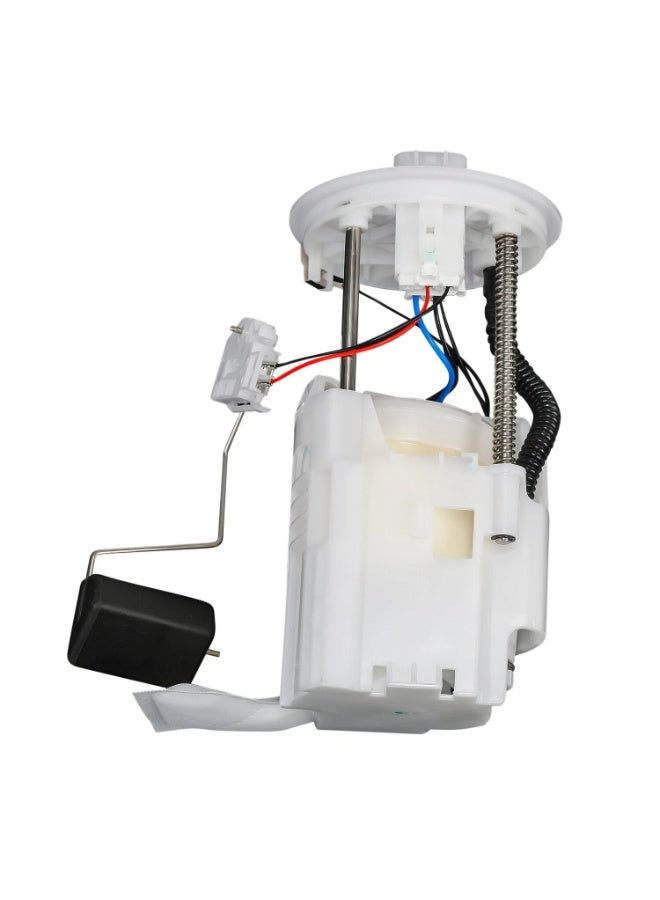

Five genuine reference assets show two whole-module views and three component details from the same selected rectangular-float configuration. All remain at their original 660×900 resolution and framing, without enlargement or synthetic angles. Fine mould texture, surface lines, small coloured marks and the pale internal material remain unchanged; the photographs do not establish pristine actual-stock condition, tested performance or installation requirements.
