Fuel Pump Module with Sender 17040-9U01B

Aftermarket replacement — reference images only. New replacement part. These are external reference photographs associated with 17040-9U01B through the Bosch 0 986 580 952 service reference, not photographs of our actual stock. Visible Bosch branding, numbers and origin markings identify the reference item only; genuine Bosch or Nissan supply, manufacturing origin and identical supplied markings are not claimed.

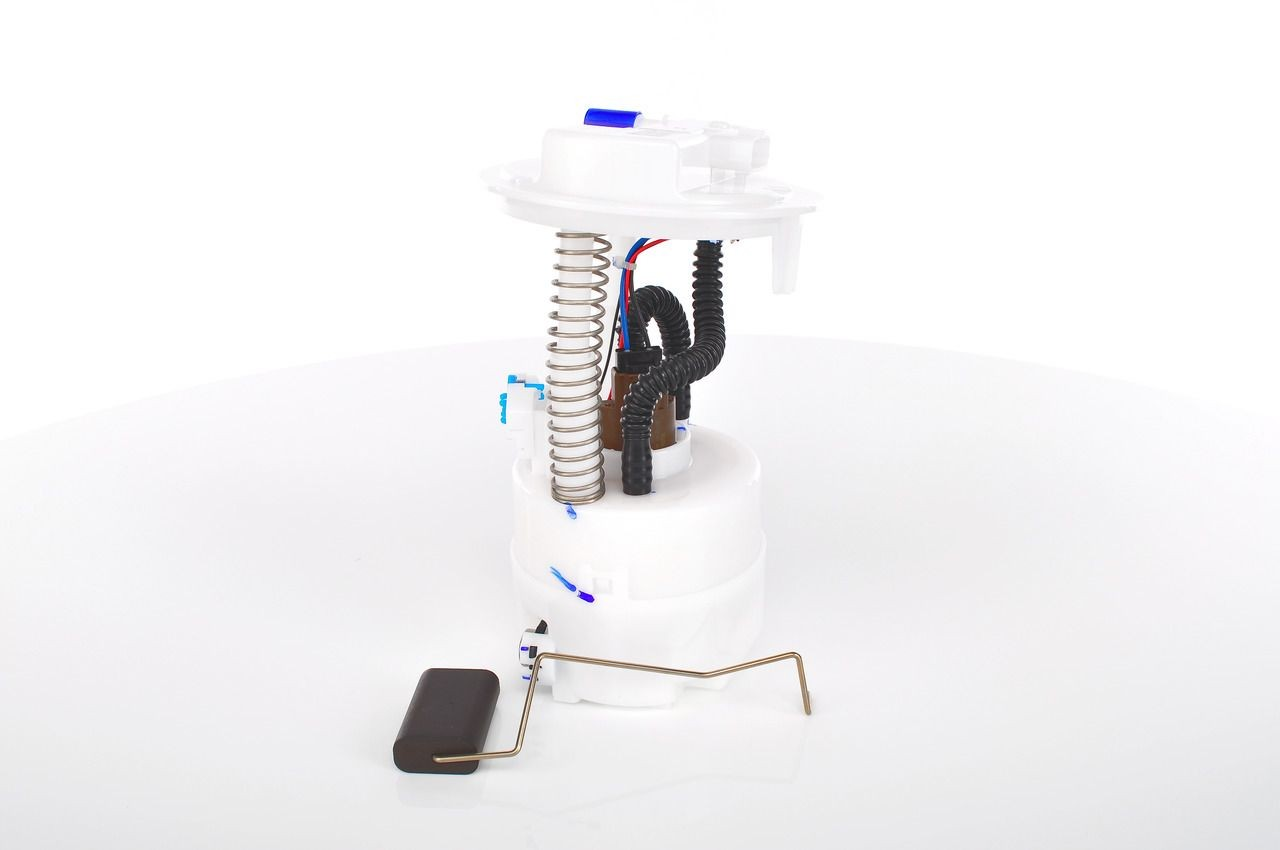

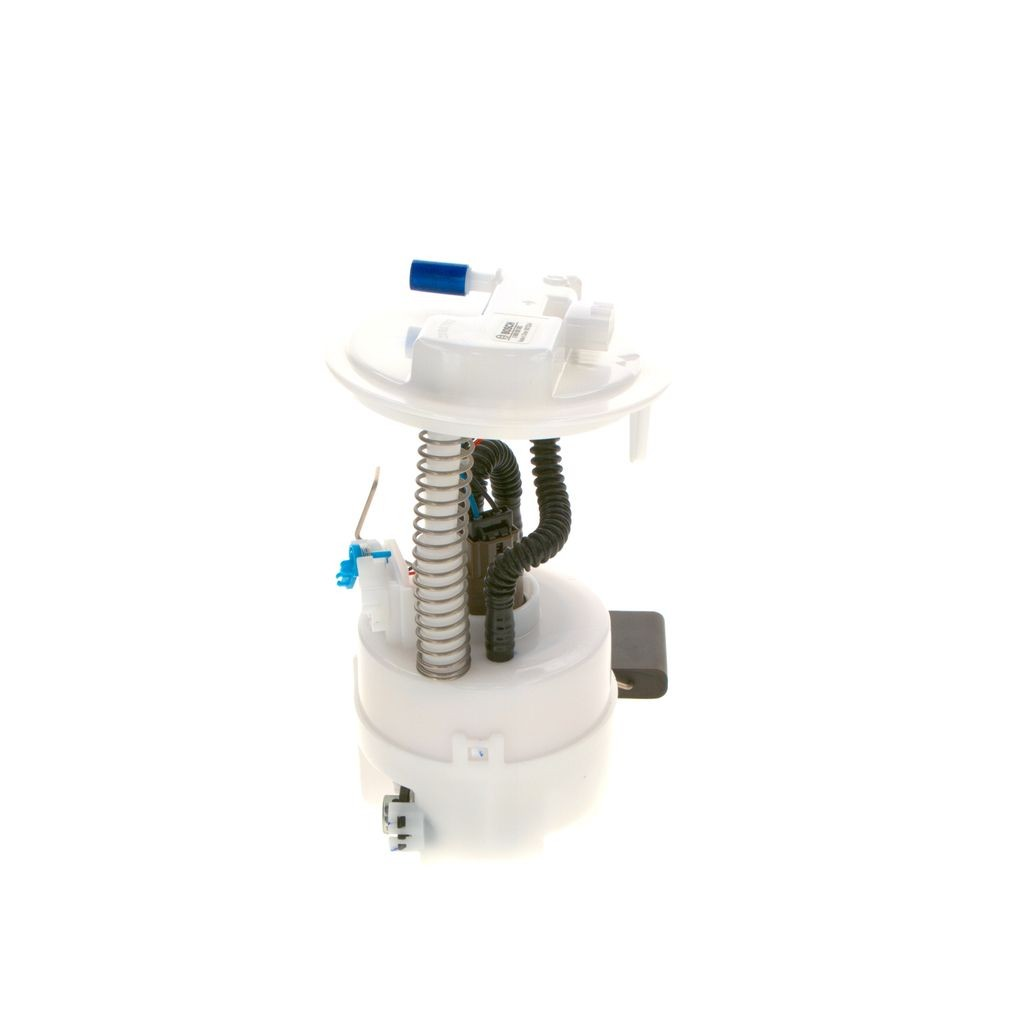

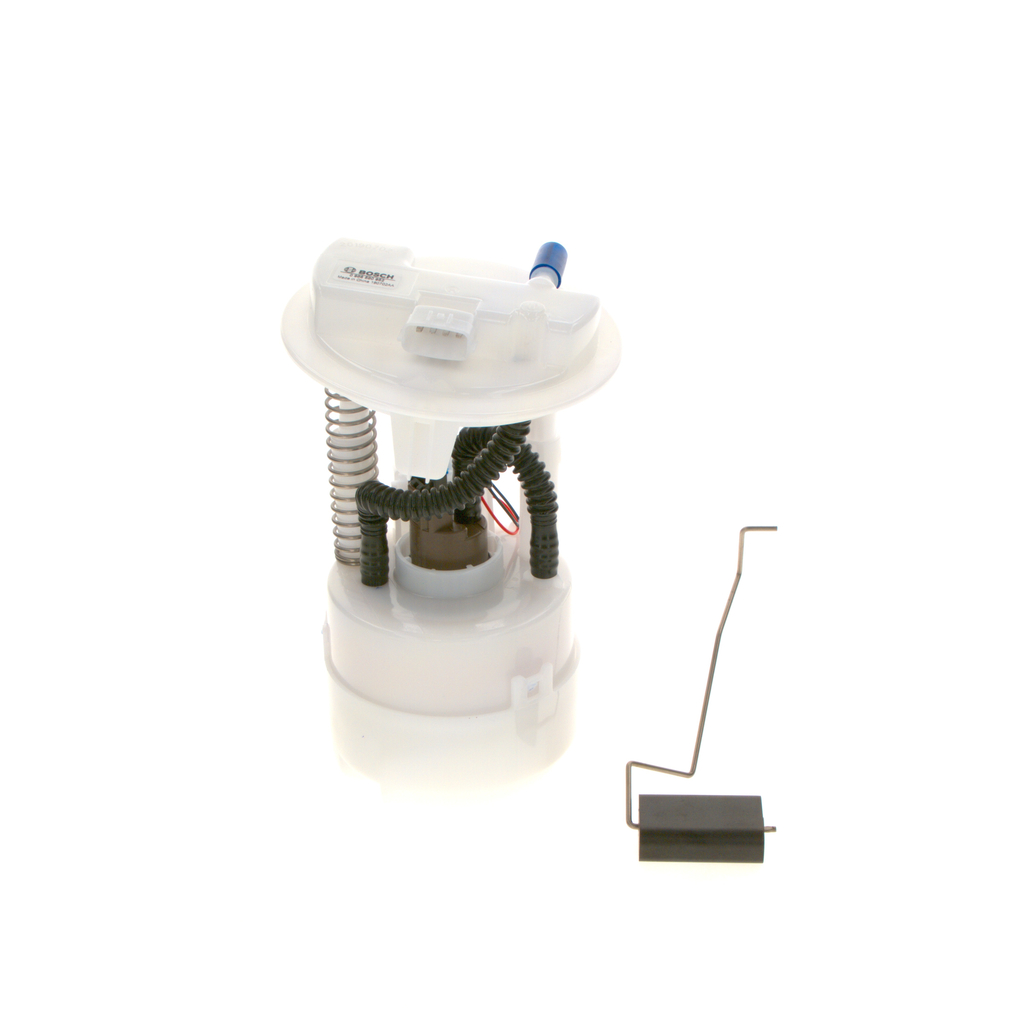

One complete in-tank fuel pump module with fuel-level sender and float arm, referenced to 17040-9U01B. The illustrated configuration includes the top flange and keyed socket, outlet, sprung supports, reservoir, internal hoses and sender mechanism. It is not a bare replacement motor core or a complete fuel tank. The reference float arm is shown detached in some views; no separate tank seal, locking ring, vehicle wiring or installation tools are promised.

Match the exact original reference and complete flange, socket, outlet, sender and reservoir layout before ordering. Shared internal pump cores, a similar appearance or vehicle name alone do not establish complete-module compatibility. Contact customer service with your VIN and original-part photographs if uncertain.

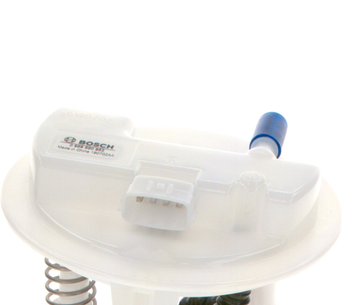

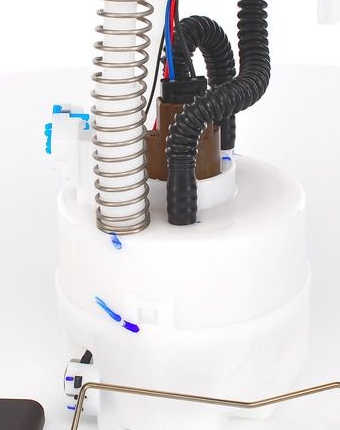

The five images comprise three whole-module reference photographs and two genuine native detail crops, not five different camera angles. Whole sources are 1024×1024 and 1280×850; details remain at their native 360×305 and 340×430 sizes without enlargement. Physical labels, blue marks, fine texture and minor surface marks remain unchanged. The photographs do not establish actual-stock testing, pristine condition, fuel pressure or flow, electrical pinout, model-year coverage or installation requirements.
